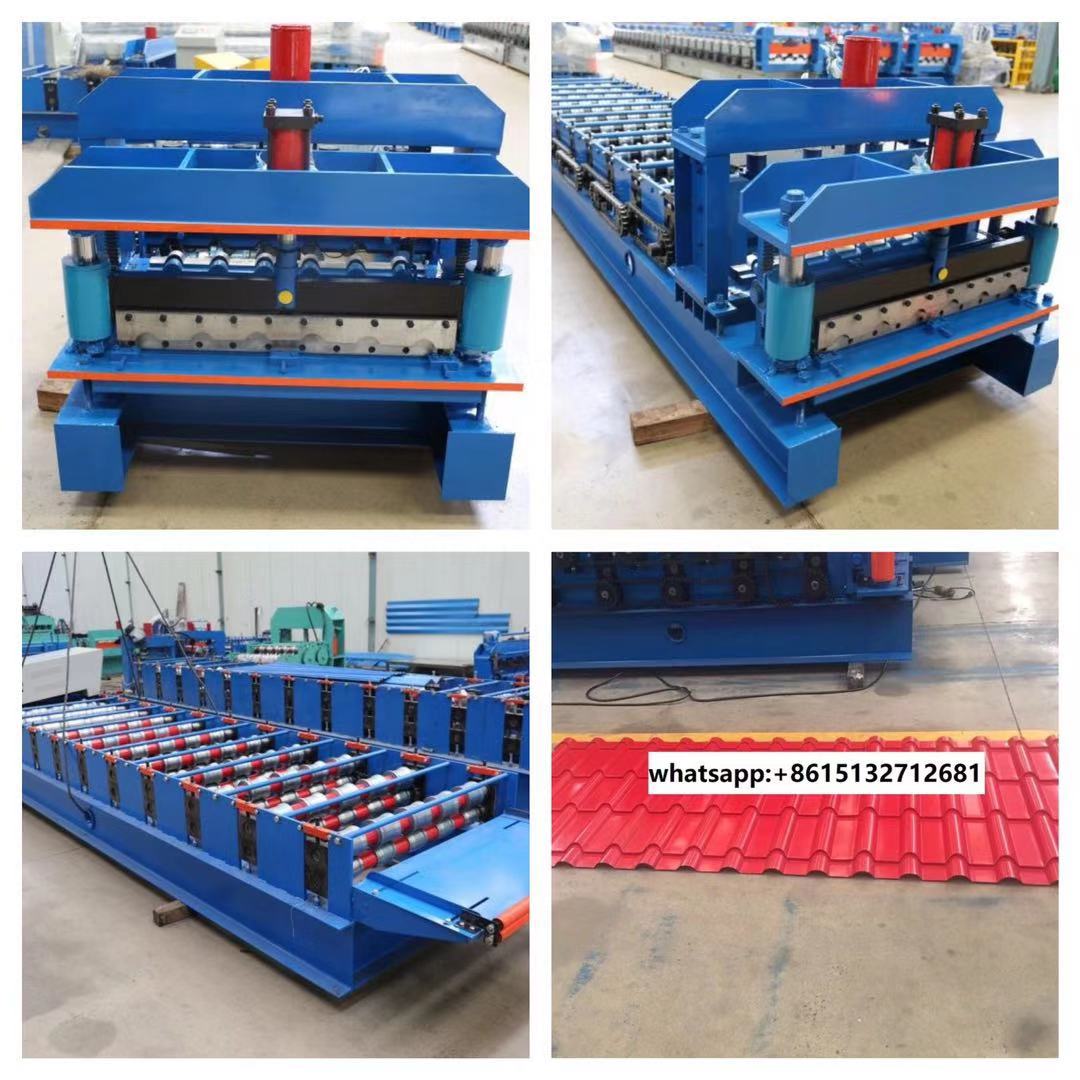

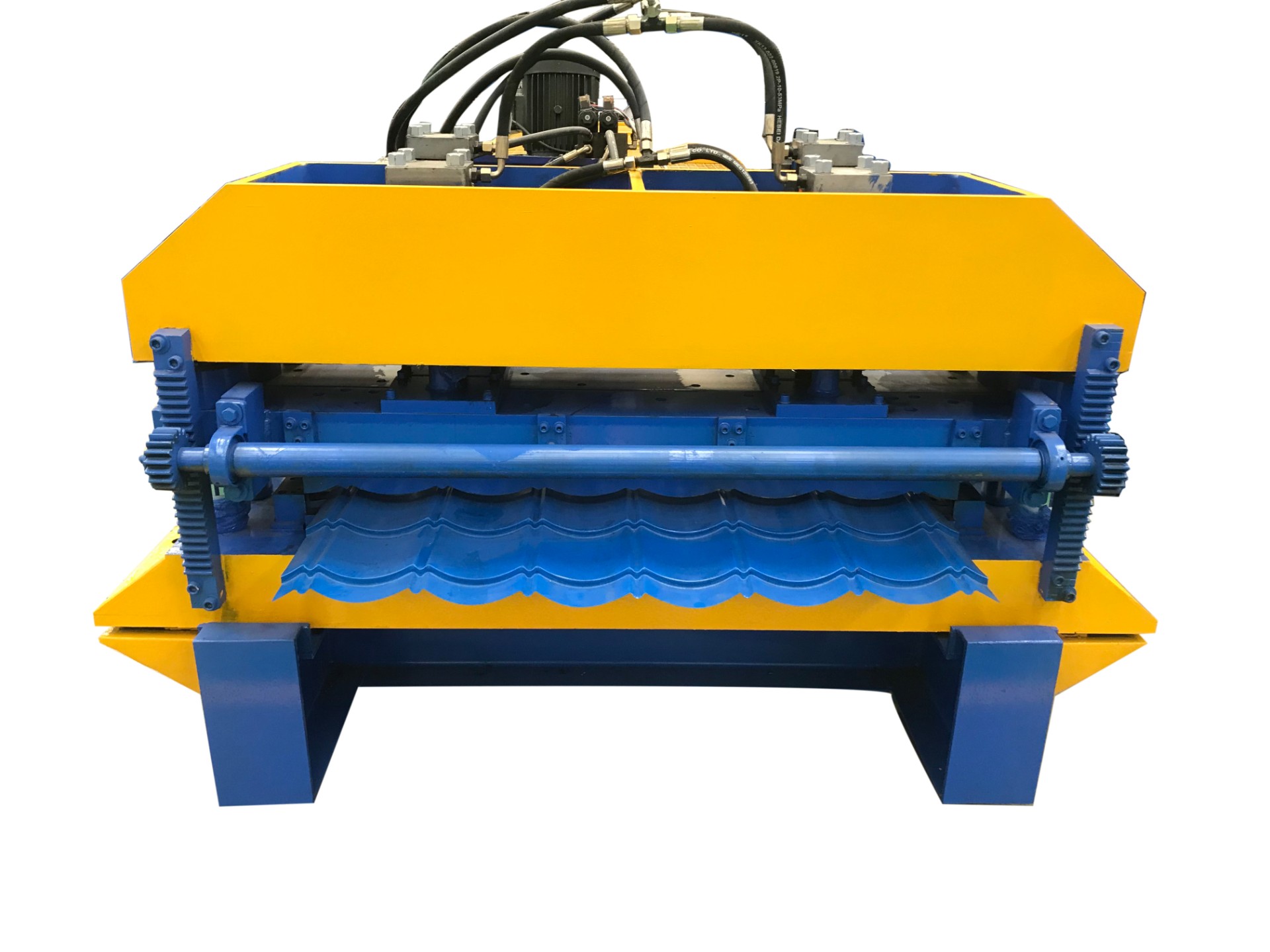

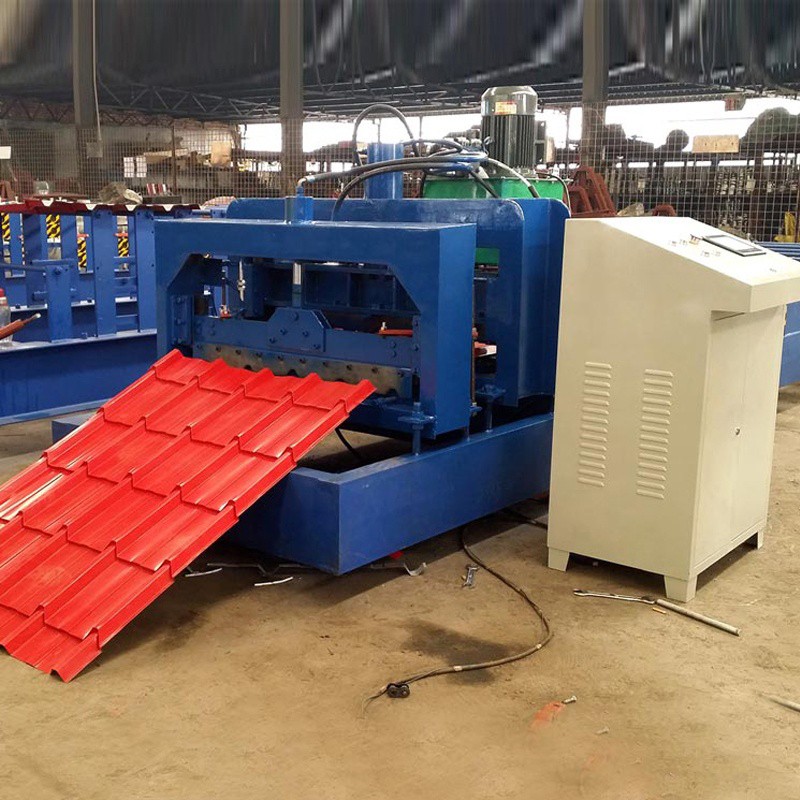

Glazed tile roll forming machine

Share

glazed tile machine,we provide 12 months guaranty.

Main components of machine:

a.      Main machine  1 set

b.      Hydraulic cutter 1 set

c.      PLC cabinet   1 set

d.      Motor        1 set

e.      Pump station   1 set

f.      Manual decoiler 1 set

g.      Receiving table 2 sets

Process of machine:

1. Technical specifications

NO.

  Item

Description

1

Material width

According to sizes

2

Number of forming steps

14

3

Diameter of shaft

50mm

4

Processing material

Steel strips

5

Processing thickness

0.3mm -0.6mm

6

Middle plate thickness

16mm

7

Material of shaft

Cr12 steel with tempering

8

Cutting type

Hydraulic cutting

9

Main motor power

4kw

10

Pump station

3kw

11

Main frame

300H steel

12

Control system

PLC computer

13

Brand of electrical system

Delta

14

Manual decoiler

5 tons

15

power

380v,3 phase,50hz

16

Dimensions(L*W*H)

7.0*0.7*1.3M

 Glazed tile roll forming machine

2. Components of machine

a.Main machine        1 set

b.Hydraulic cutter part   1 set

c.PLC cabinet part       1 set

d.Motor               1 set

e.Pump station         1 set

f.Manual decoiler       1 set

g.Runout table         2 sets

3. Payment terms

a. Payment terms: 30% T/T deposit in advance and the balance 70% after inspection and before shipment.

b. Warranty: One year. And we will provide the technical support for the whole life.

c. When picking up goods, we will provide the operating instruction book and the element of easy damaging.

d. Delivery time: Within 45 working days after received deposit.
