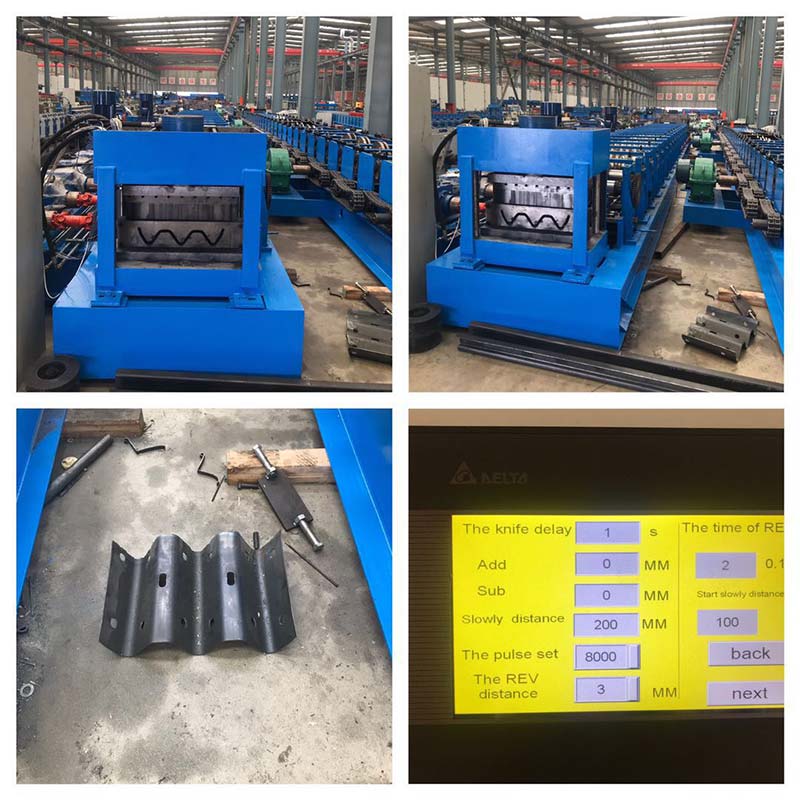

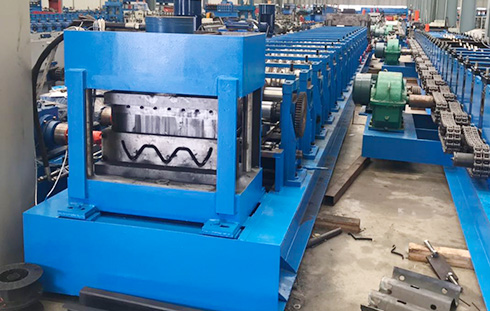

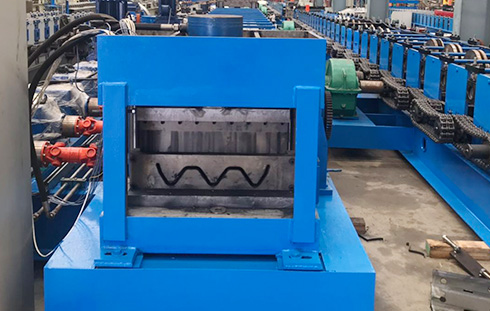

Highway Guardrail Roll Forming Machine

Share

Components of machine

a. Main machine 1 set

b. Hydraulic cutter part 1 set

c. PLC cabinet part1 set

d. Motor 1 set

e. Pump station 1 set

f. Manual decoiler1 set

g. Runout table 2 sets

Payment terms

a. Payment terms: 30% T/T deposit in advance and the balance 70% after inspection and before shipment.

b. Warranty: One year. And we will provide the technical support for the whole life.

c. When picking up goods, we will provide the operating instruction book and the element of easy damaging.

d. Delivery time: Within 45 working days after received deposit.

Technical specifications

NO.ItemDescription
1Material widthAccording to drawing size
2Number of forming steps20
3Diameter of shaft90mm
4Processing materialGI,PPGI
5Processing thickness3.0mm
6Middle plate thickness16mm
7Material of shaft45# steel with tempering
8Cutting typeHydraulic cutting
9Main motor power11kw
10Pump station4kw
11Main frame300H steel
12Control systemPLC computer
13Brand of electrical systemDelta
14Manual decoiler5 tons
15power380v,3 phase,50hz
16Dimensions(L*W*H)9.5*1.2*1.2M
