double light steel frame machine

Share

Main components of machine:

a.      Main machine  1 set

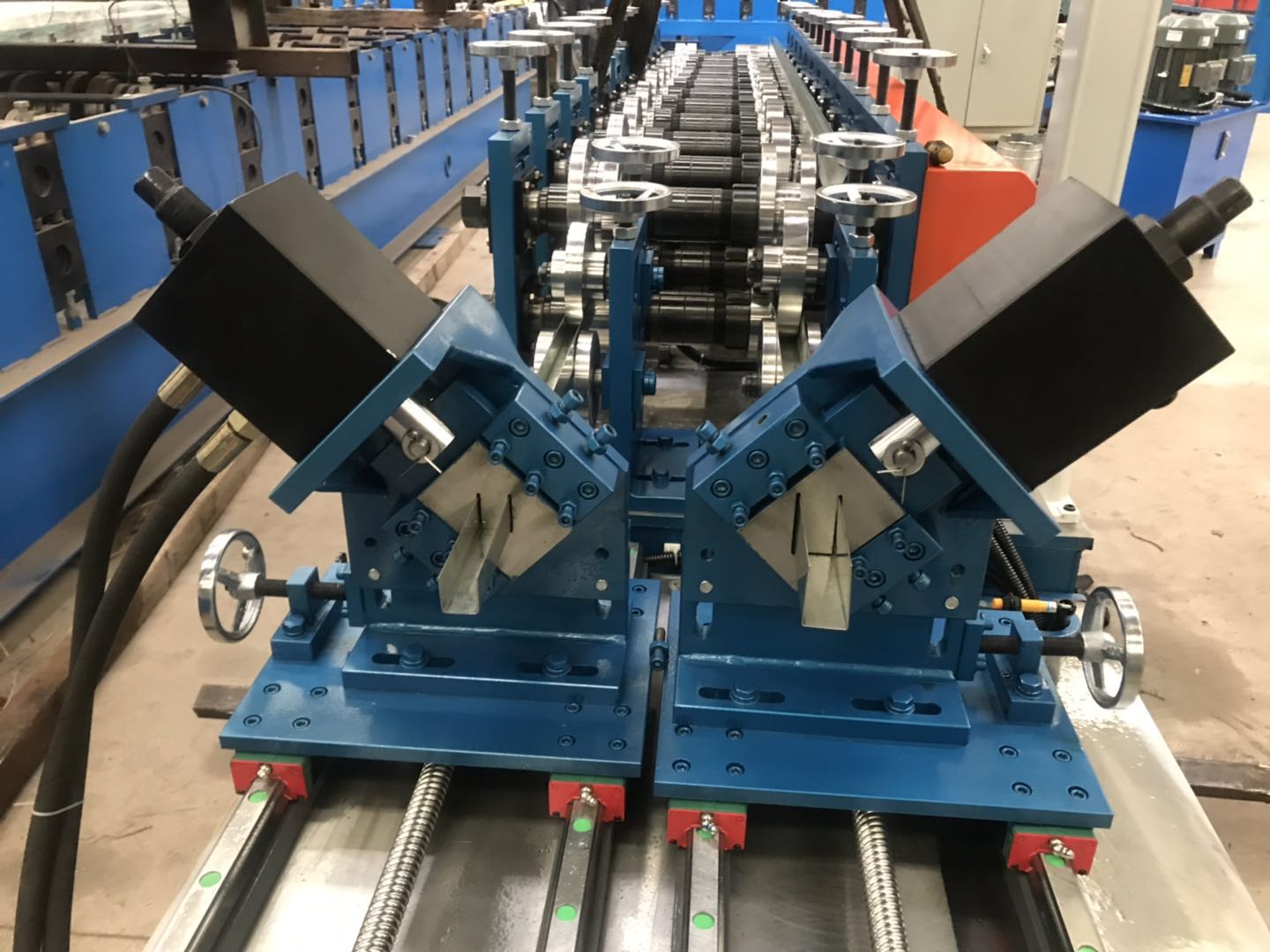

b.      Hydraulic cutter 1 set

c.      PLC cabinet   1 set

d.      Motor        1 set

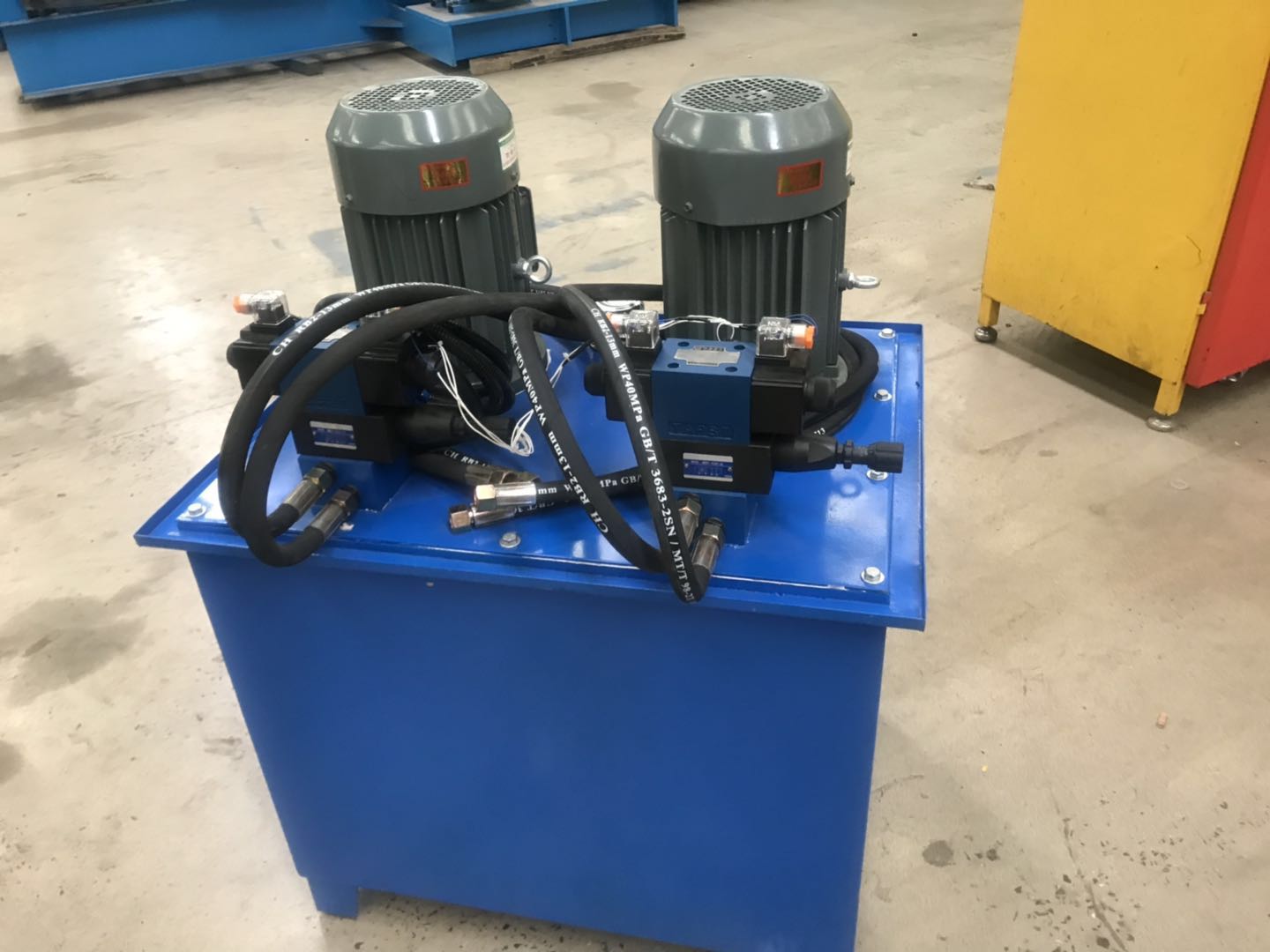

e.      Pump station   1 set

f.      Manual decoiler 1 set

g.      Receiving table 2 sets


NO.

  Item

Description

1

Material width

According to sizes

2

Number of forming steps

12

3

Diameter of shaft

50mm

4

Processing material

Steel strips

5

Processing thickness

0.5mm -1.0mm

6

Middle plate thickness

25mm

7

Material of shaft

Cr12 steel with tempering

8

Cutting type

Hydraulic cutting

9

Main motor power

7.5kw

10

Pump station

4kw

11

Main frame

300H steel

12

Control system

PLC computer

13

Brand of electrical system

Delta

14

Manual decoiler

5 tons

15

power

380v,3 phase,50hz

16

Dimensions(L*W*H)

7.0*0.7*1.3M
