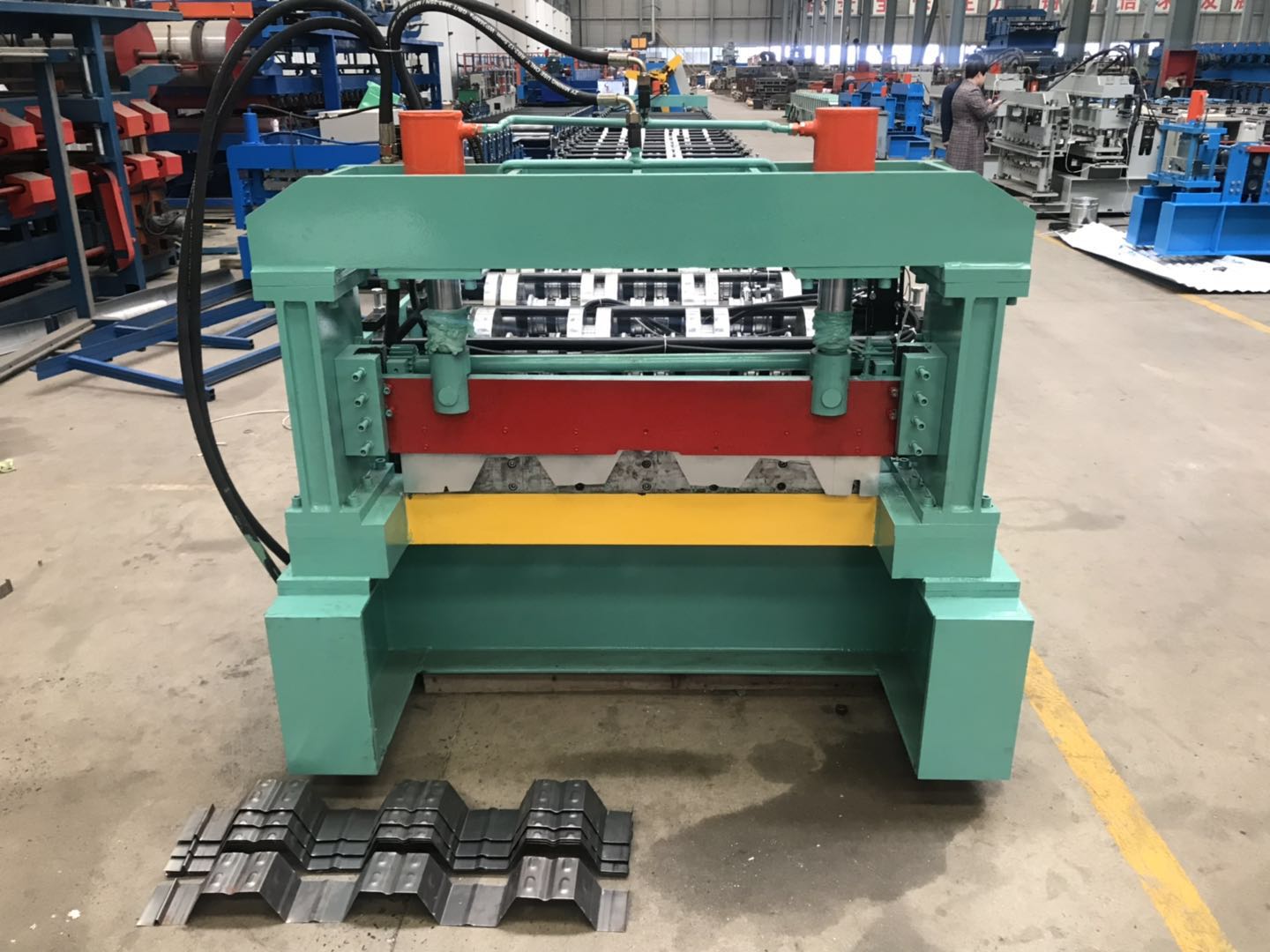

Floor deck roll forming machine

1. good quality .


2. engineer go aboard for installation of machine

3. offer one year guaranty


1. Technical datas

   NO.	Item	Description
   1	Material width	333

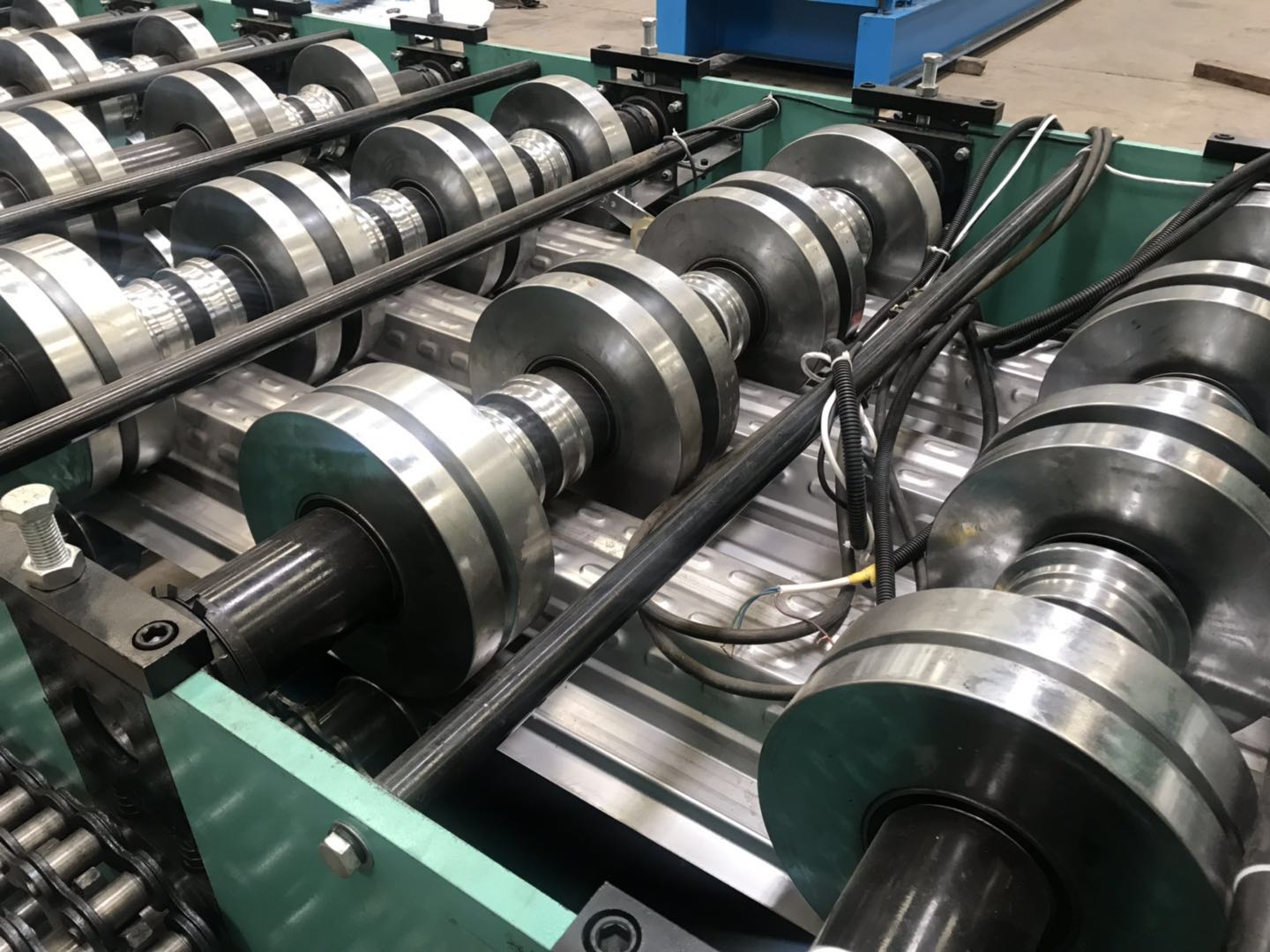

   2	Number of forming steps	13
   3	Diameter of shaft	70mm
   4	Processing material	GI,PPGI
   5	Processing thickness	0.2mm -0.6mm
   6	Middle plate thickness	16mm
   7	Material of shaft	45# steel with tempering
   8	Cutting type	Hydraulic cutting
   9	Main motor power	4kw
   10	Pump station	3kw
   11	Main frame	300H steel
   12	Control system	PLC computer
   13	Brand of electrical system	Delta
   14	Manual decoiler	5 tons
   15	power	380v,3 phase,50hz
   16	Dimensions(L*W*H)	6.0*1.2*1.2M

2. Components of machine

a.Main machine        1 set

b.Hydraulic cutter part   1 set

c.PLC cabinet part       1 set

d.Motor               1 set

e.Pump station         1 set

f.Manual decoiler       1 set

g.Runout table         2 sets

3. Payment terms

a. Payment terms: 30% T/T deposit in advance and the balance 70% after inspection and before shipment.

b. Warranty: One year. And we will provide the technical support for the whole life.

c. When picking up goods, we will provide the operating instruction book and the element of easy damaging.

d. Delivery time: Within 45 working days after received deposit.
